SC71914FB/P7軸承
SC71914FB/P7軸承是SKF公司同時面向工業配套和維修市場的產品，鼎力晟業同時代理此兩項業務，不僅為批量采購的用戶提供優惠的SKF SC71914FB/P7軸承，同時也為零散采購用戶提供價格優惠的及時供貨服務。
型號：SC71914FB/P7
品牌：SKF
內徑：70
外徑：100
厚度：16
系列：角接觸球軸承, 精密, SC .. FB, sealed, contact angle 18°, hybrid
【
手機版 SC71914FB/P7軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18922176822 郵箱：sales@gzbearing.cn

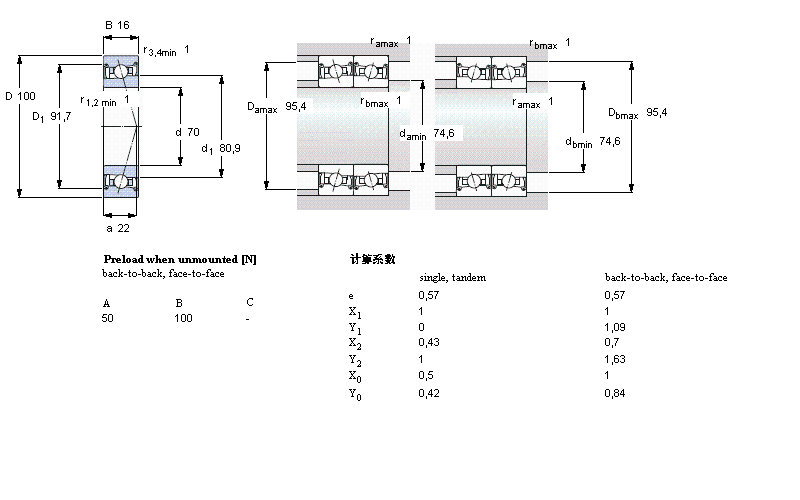

SKF SC71914FB/P7尺寸圖紙
SC71914FB/P7軸承基本參數
| 角接觸球軸承, 精密, SC .. FB, sealed, contact angle 18°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 70 | 100 | 16 | 18,2 | 21,2 | 0,9 | 18000 | - | 0,33 | SC71914 FB/P7 | - | |
角接觸球軸承, 精密, SC .. FB, sealed, contact angle 18°, hybrid
- 品牌
- 型號
- 內徑
- 外徑
- 厚度
- 系列
- SKF
- SC7009FB/P7軸承
- 45
- 75
- 16
- 角接觸球軸承, 精密, SC .. FB, sealed, contact angle 18°, hybrid
- SKF
- SC71922FB/P7軸承
- 110
- 150
- 20
- 角接觸球軸承, 精密, SC .. FB, sealed, contact angle 18°, hybrid
- SKF
- SC71918FB/P7軸承
- 90
- 125
- 18
- 角接觸球軸承, 精密, SC .. FB, sealed, contact angle 18°, hybrid
- SKF
- SC7020FB/P7軸承
- 100
- 150
- 24
- 角接觸球軸承, 精密, SC .. FB, sealed, contact angle 18°, hybrid
- SKF
- SC71906FB/P7軸承
- 30
- 47
- 9
- 角接觸球軸承, 精密, SC .. FB, sealed, contact angle 18°, hybrid
- SKF
- SC7006FB/P7軸承
- 30
- 55
- 13
- 角接觸球軸承, 精密, SC .. FB, sealed, contact angle 18°, hybrid
- SKF
- SC71907FB/P7軸承
- 35
- 55
- 10
- 角接觸球軸承, 精密, SC .. FB, sealed, contact angle 18°, hybrid
- SKF
- SC7007FB/P7軸承
- 35
- 62
- 14
- 角接觸球軸承, 精密, SC .. FB, sealed, contact angle 18°, hybrid
